Prefabricated Steel Truss Roof Structure for Warehouse Construction

Brand Name : YDX

Model Number : YDX-4FSD

Certification : CE ISO SGS

Place of Origin : CHINA,QINGDAO

MOQ : 10-10000 square meters

Price : $30.00-$65.00

Payment Terms : T/T

Supply Ability : 10000 tons/month

Delivery Time : 20-30 works days

Packaging Details : Exported standard packing

Surface Treatment : Painted Or Galvanized

Product Resistance : Corrosion Resistant

Building : Prefabricated Steel Structure

Install : Support Installation

Structure : Steel Structure

Working Scope : Design,Fabrication, Installation

Size : Customized

Construction : Steel Frame

Structure Type : Frame

Frame Type : Steel Frame

Earthquake Resistance : Strong

Windows : Aluminum

Seismic Design : High Seismic Zone

Installation Time : Short

Aesthetics : Modern

Construction Type : Frame

Cost : Moderate

Finish : Galvanized/Painted/Cladding

Roof : Glass Wool, EPS, PU

Product Fire Resistance : Fireproof

Door : Sliding Door or Rolling Door

Contact Now

Truss Roof Steel Structure Warehouse Construction Metal Truss Fabrication

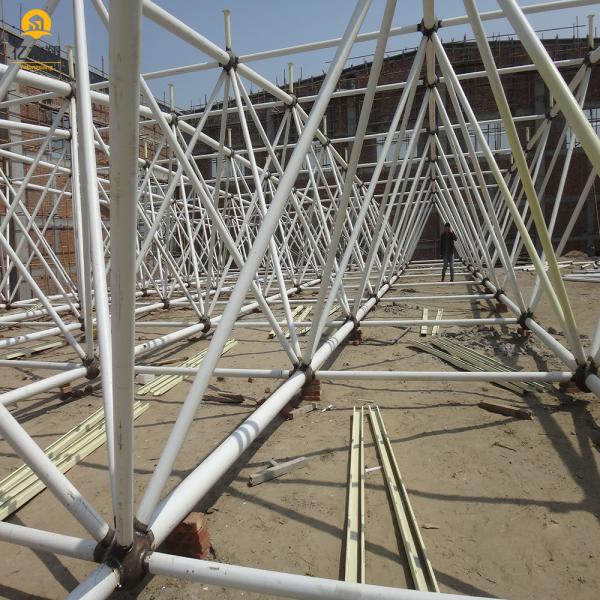

Steel truss roof is one kind of structure consisting of rods connected by hinges at each end. Trusses are generally planar or spatial structures composed of straight bars with triangular elements. The members of trusses are mainly subjected to axial tension or pressure, so as to make full use of the strength of materials. When the span is large, it can save materials, reduce the dead weight and increase the stiffness compared with the real web beam.

We disign the drawing, fabricate all the steel columns, beams, purlin, ect, install the steel structure and panel, window&doors for our client.

Product Application
Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse
A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding!
An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework.
SPECIFICATION FOR STEEL STRUCTURE BUILDING
Main Steel Frame	Steel Column & Beam	1. Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel
		2. Surface: Hot Dip Galvanized or Painted;
		3. Connection: All Bolts Connection;
Supporting System	Roof Purlin	C or Z Section Steel, Q235B
	Wall Purlin	C or Z Section Steel, Q235B
	Bracing	Steel Rod, Q235B
	Cross Support	Steel Rod, Q235B
	Column Support	Angle Steel; Steel Rod; Q235B
	Angle Brace	Angle steel,Q235B
	Tie Bar	Steel Pipe,Q235B
	Roof & Wall System	1. Single Colorful Corrugated Steel Sheet; Thickness: 0.3-0.8mm
	Roof & Wall System	2. Sandwich Panel with EPS, Rock Wool, Fiberglass,PU; Thickness: 50-150mm;
Accessories	Door	Sliding; Rolled Up Door (Manual/Auto)
	Window	Aluminum Alloy; PVC;
	Downspout	PVC pipe;
	Gutter	Galvanized Steel Sheet; Stainless Steel
	Ventilator	Stainless Steel Turbine Ventilator
	Skylight Belt	FRP or PC semi-transparent Skylight Belt
	Flash	Color Steel Sheet
	Fittings	Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc

Prefabricated Steel Truss Roof Structure for Warehouse Construction

Packing and transport:

All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
